Altivar 32 - VSD
Altivar 32 - VSD Variable Speed Drive Schneider Electric Malaysia, Selangor, Kuala Lumpur (KL) Supplier, Suppliers, Supply, Supplies | MXT Automation Sdn Bhd
Quantity
Download Files
ATV32.pdf (4.03 MB)

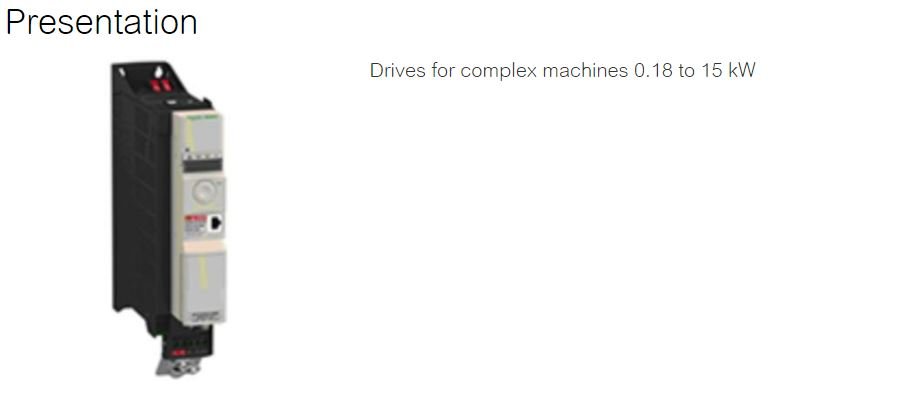

Presentation

Altivar 32, with its extra-slim format, offers numerous advantages in the control of asynchronous and synchronous motors operating in open loop mode :

  • More innovations
    .
     Narrower product (45 mm wide)
    . Vertical mounting, side-by-side or sideways on
    . Circuit-breaker connected directly to the product (same 45 mm width)
    . Embedded Bluetooth®: remote adjustment and parameter setting via mobile phone or PC
    . Configuration with the power off in its original packaging
  • Greater autonomy
    .
     Integrated programmable logic functions
  • More safety functions
    .
     Numerous safety functions as standard
    - STO (Safe Torque Off)
    - SLS (Safely Limited Speed)
    - SS1 (Safe Stop 1)
  • More openness :
    . Either Modbus or CANopen is integrated as standard. Numerous other industrial communication networks can be accessed by simply inserting a communication cassette in the drive :
    - CANopen Daisy Chain (for connecting the drives in a daisy chain easily)
    - EtherNet/IP - Modbus TCP (double port)
    - Profibus
    - DeviceNet
    - EtherCat
    - Etc.
  • Tools common to several other Schneider Electric products, adapted to each type of user
    (cable installer, programmer, operator)
    - Remote graphic display terminal for remote configuration
    -  Multi Loader for storing configurations and loading them quickly
    -  Simple Loader for duplicating and loading a configuration
  • SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable
  • SoMove Mobile software for modifying or sending a configuration remotely via mobile phone



Benefits

So Slim, So smart !

  • Ultra-slim
    - Extremely compact motor starter unit
    - Enclosures can be 40% smaller
  • Very complete
    - More than 150 integrated application functions
    - Performs simple control system functions
    - Machine safety functions as standard
  • Very user-friendly
    - Quick wiring and programming thanks to special tools
    - Configuration in its original packaging even with the power off
  • Open
    - Communicates with most industrial networks
    - CANopen or Modbus as standard
  • Economical
    - 10% more energy efficiency, on average, with a synchronous motor in open loop mode, by optimising  performance at low speed.



Applications

  • Hoisting machines
  • Simple packaging machines
  • Material handling machines
  • Textile machines
  • Special machines: wood-working machines, metal processing machinery (bending, welding, etc.), and so on
